Enclosure
|
Bass-reflex type
|
|
Rated impedance
|
30 W (high impedance)
|
|
Power Handling Capacity
|
Continuos pink noise: 50 W (low impedance) Continuos program: 150 W (low impedance)
|
|
Frequency response
|
80 Hz – 20 kHz, -10 dB at installation in 1/2 free sound field
|
|
Speaker component
|
Low frequency: 13 cm (5″) cone-type High frequency: 25 mm (1″) dome tweeter
|
|
Rated Impedance
|
8 Ω 100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W) 70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
|
Dimensions
|
162 (W) × 250 (H) × 161 (D) mm (6.38″ × 9.84″ × 6.34″)
|
|
Finish
|
Enclosure: HIPS, white Punched net: Surface-treated steel plate, white, paint Joint bracket, wall bracket: Steel plate, t1.6, white, paint Speaker bracket: Die-cast aluminum, white, paint |
|
Sensitivity
|
90 dB (1 W, 1 m) at installation in 1/2 free sound field
|
|
Crossover Frequency
|
2 kHz
|
|
Directivity Angle
|
Horizontal: 110゜, Vertical: 100゜
|
|
Input Terminal
|
Push-in terminal
|
|
Weight
|
3.6 kg (7.94 lb) (including the supplied brackets)
|
|
Accessory
|
Speaker bracket…1, Joint bracket…1, Wall bracket…1, Bracket fixing screw…1 set
|
|
Option
|
Board hanger bracket: HY-BH10B, Ceiling mount bracket: HY-CM10W (used for the horizontal speaker mounting), Cluster bracket: HY-CL10B, Speaker stand: ST-16A |

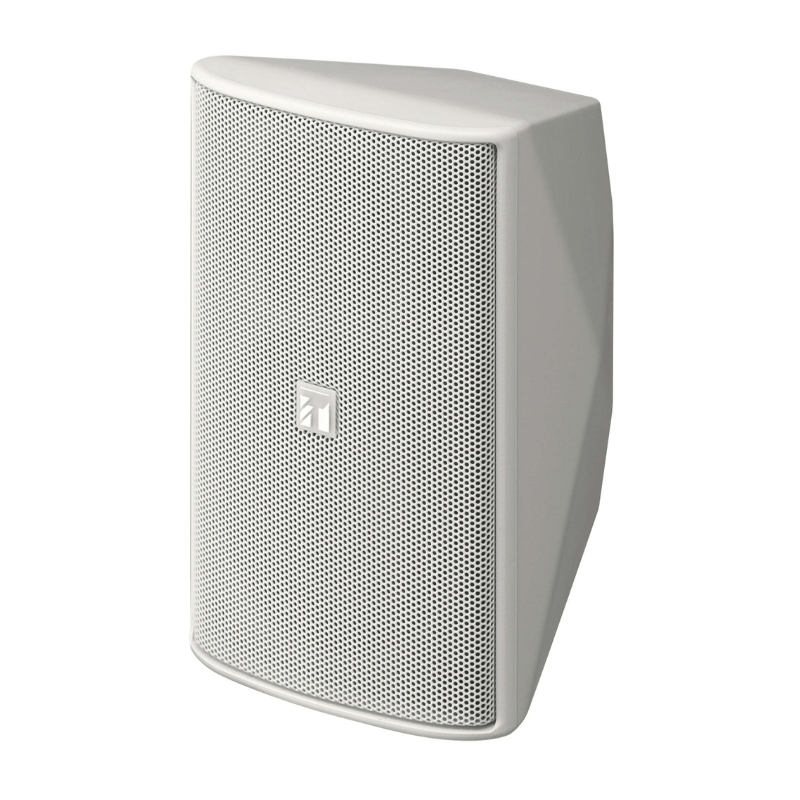

Toa F-1300WT Wide-dispersion Wall Mount Speaker System
WhatsApp For Pricing
Toa F-1300WT Wall Mount Speaker
• Compact wide-dispersion high and low impedance speaker
• 150 W continuous program (low impedance)
• Dispersion angle of 110° x 100°
• 2-way speaker with high-quality 13 cm woofer and balanced dome tweeter
• Pan-tilt wall/ceiling bracket included
• Paintable
