Rated input
|
60 W (high impedance)
|
|
Rated impedance
|
8 Ω 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W) 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W) |
|
Sound Pressure Level (1m/1W)
|
96dB
|
|
Frequency response
|
65 Hz – 20 kHz, -10 dB at installation in 1/2 free sound field
|
|
Speaker component
|
Low frequency: 20 cm (8″) cone-type High frequency: 25 mm (1″) dome tweeter
|
|
Dimensions
|
244 (W) × 373 (H) × 235 (D) mm (9.61″ × 14.69″ × 9.25″)
|
|
Finish
|
Enclosure: HIPS, white Punched net: Surface-treated steel plate, white, paint Joint bracket, wall bracket: Steel plate, t2.0, white, paint Speaker bracket: Die-cast aluminum, white, paint |
|
Enclosure
|
Bass-reflex type
|
|
Sensitivity
|
92 dB (1 W, 1 m) at installation in 1/2 free sound field 93 dB (1 W, 1 m) at installation in 1/2 free sound field (with horn adapter) |
|
Crossover Frequency
|
2.5 KHz
|
|
Directivity Angle
|
Horizontal: 110゜, Vertical: 100゜ Horizontal: 80゜, Vertical: 80゜ (with horn adapter)
|
|
Input Terminal
|
Push-in terminal
|
|
Weight
|
7.4 kg (16.31 lb) (including the supplied brackets)
|
|
Accessory
|
Speaker bracket…1, Joint bracket…1, Wall bracket…1, Bracket fixing screw…1 set, Horn adapter…1, Horn adapter mounting screw…4 |
|
Option
|
Ceiling mount bracket: HY-CM20W (used for the horizontal speaker mounting), Cluster bracket: HY-CL20B, Speaker stand: ST-16A |

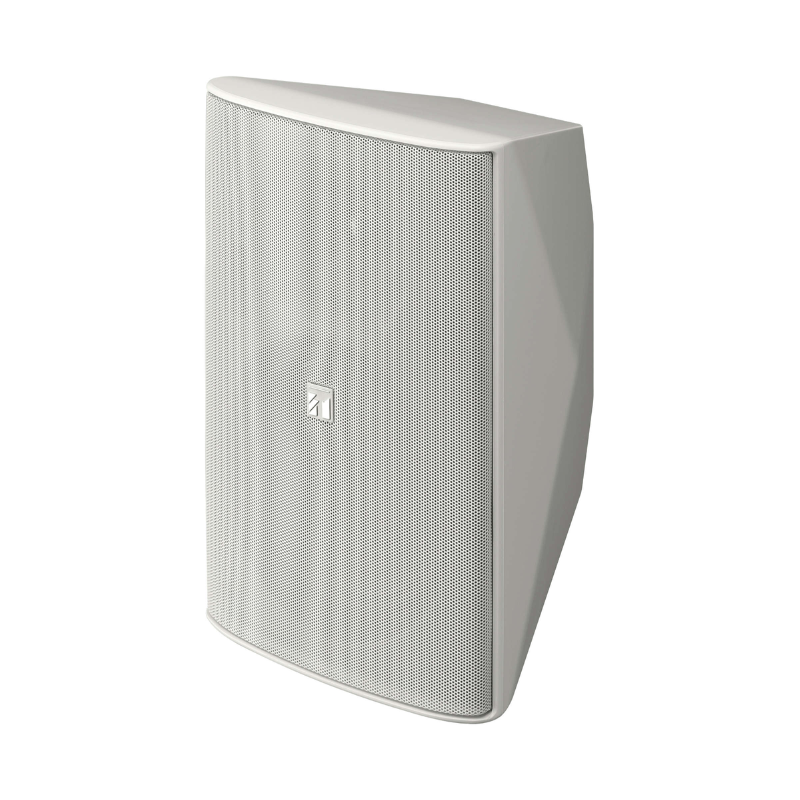

Toa F-2000WT Wide-dispersion Wall Mount Speaker System
WhatsApp For Pricing
TOA F-2000WT Wall Mount Speaker
• Compact wide-dispersion high and low impedance speaker
• Dispersion angle of 110° x 100°
• Easily mountable 80° x 80° horn adapter for increased dispersion control included
• 2-way speaker with high-quality 20 cm woofer and balanced dome tweeter
• 180 W continuous program (at low impedance)
• Wall/ceiling pan-tilt mounting bracket included
• Paintable
