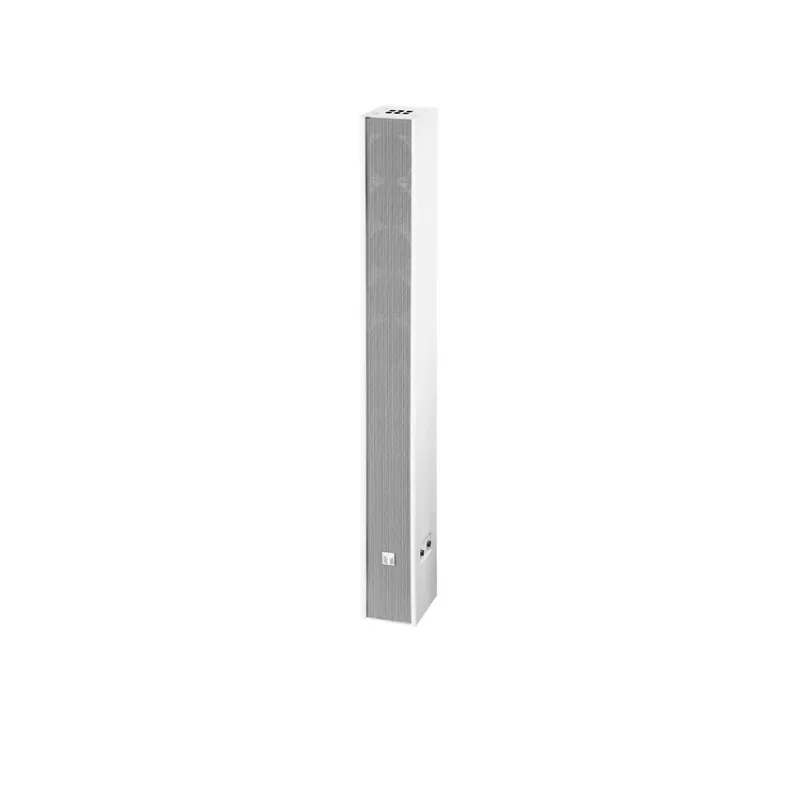

Toa TZ-S60W Slim Wall Mount Column Array Speaker

WhatsApp For Pricing

• 90° horizontal x 0° vertical directivity control
• Low impedance and high impedance selectable by a rotary switch
• Accessory speaker brackets provide installation flexibility
• TZ-S60W x 2pcs can be stacked for wider coverage

Share it:
Features
Related Products

Features

Toa TZ-S60W Slim Wall Mount Column Array Speaker

Enclosure Bass Reflex Type
Max. Input Power
(Low Impedance)
120 W (Continuous pink noise)
Rated Input
(High Impedance)
60 W
Rated Impedance Low Impedance: 8Ω
100 V line: 167 Ω (60 W), 330 Ω (30 W), 500 Ω (20 W), 1 kΩ (10 W): Selectable
Sensitivity 95 dB (1 W, 1 m)
Frequency Response 180 Hz – 15,000 Hz
Speaker Component 8 cm (3″) cone-type × 9
Connection Push-In Terminals
Operating Temperature -10 °C – +50 °C
Directivity Angle Horizontal: 90° / Vertical: 0°
Impedance Change Rotary Switch (Selectable)
Finish Enclosure: MDF, Wet Paint, White
Punched Net: SECC, Wet Paint, White
Wall Bracket: SECC, Wet Paint, White
Side Panel: SECC, Wet Paint, White
Metal Cover: SECC, Wet Paint, White
Dimensions 100 (W) × 883 (H) × 130 (D) mm
Weight 8.2 kg (unit only)
Accessory Speaker Bracket x 1, Joint Bracket x 1, Wall Bracket x 1, Fixing Bolt (M5 x 60) x 1, Hexagon Bolt (M6 x 12) (with plain washer and spring washer) x 2, Machine Screw (M5 x 15) (with plain washer and spring washer) x 4
Option HY-S60W: Side Stack Bracket x 2, Rear Stack Bracket x 1
