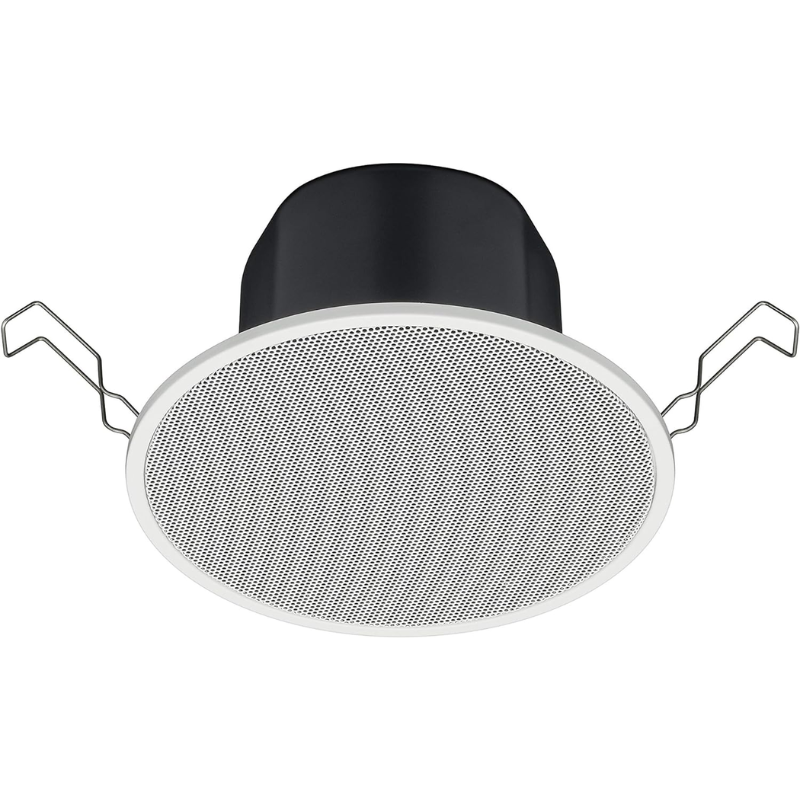

TOA PC-1860BS Ceiling Speaker

WhatsApp For Pricing

PC-1860BS Ceiling Speaker

The ceiling speakers of the PC-series are suitable for announcements and BGM system use in high quality. The speaker’s design harmonizes with modern architecture and decor.The Toa PC-1860BS is equipped with a fire dome to protect it from fire and to prevent fire from spreading through the ceiling. Thus, the speaker is designed according to British Standard BS 5839-8: 2008 and EN54-24.

Share it:

Features

TOA PC-1860BS Ceiling Speaker

	PC-1860BS
Frequency response	170 Hz – 20 kHz (peak -20 dB)
Connection	2-Steatite connector (3 pole)
Sensitivity (1 W, 1 m)	95 dB 500 Hz – 5 kHz, pink noise
Max. SPL (value)	100 dB
Speaker component	12 cm cone-type
Rated input (high impedance)	6 W (100 V), 3 W (70 V)
Tappings	100 V: 1.7 kΩ (6 W) / 3.3 kΩ (3 W) / 6.7 kΩ (1.5 W) / 13 kΩ (0.8 W) 70 V: 1.7 kΩ (3 W) / 3.3 kΩ (1.5 W) / 6.7 kΩ (0.8 W) / 13 kΩ (0.4 W)
Mounting Hole	156 mm
Max. SPL (1 m)	100 dB 6 W, 100 Hz – 10 kHz, pink noise
Dust / Water protection.	IP 21C
Operating temperature.	-10 °C to +50 °C
Dimensions.	180 x 105 mm (Ø x D)
Finish.	Steel plate, paint, traffic white (RAL 9016 or equivalent), Grille: Steel net, paint, white (RAL 9016 or equivalent) Fire dome: Steel plate, paint, black
Accessory (included)	Rubber grommet x 2, Paper pattern x 1
