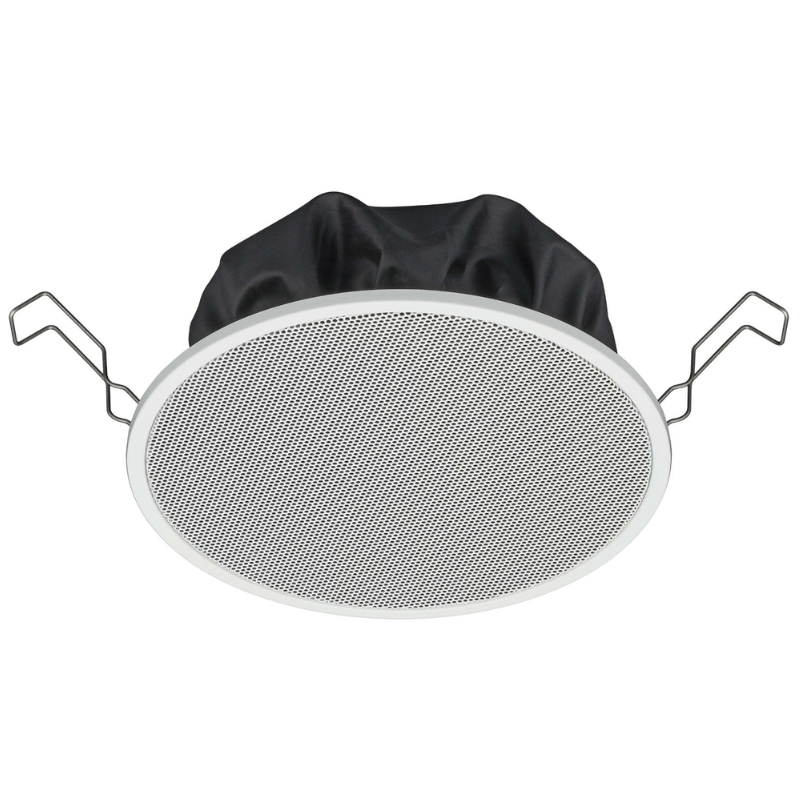

TOA PC-1860 watt Ceiling Speaker

WhatsApp For Pricing

TOA PC-1860 watt Ceiling Speaker

The TOA PC-1860 is suitable for announcements and BGM system use in high sound quality. The speaker’s design
harmonizes with modern architecture and decor.

Share it:
Features
Related Products

Features

TOA PC-1860 watt Ceiling Speaker

Rated input
6 W (100 V line), 3 W (70 V line)
Rated impedance

100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W)

70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)

Sensitivity
96 dB (1 W, 1 m) (500 Hz – 5 kHz, pink noise)
Frequency response
80 Hz – 20 kHz (peak -20 dB)
Speaker component
12 cm (5″) cone-type
Dimensions of fixing hole

Mounting hole: φ150±3 mm (5.91″±0.12″)

Ceiling thickness: 5 – 25 mm (0.2″ – 0.98″)

Dimensions
φ180 × 70 (D) mm (7.09″ × 2.76″)
Finish

Frame: Steel plate, white (RAL 9016 equivalent), paint

Grille: Steel net, white (RAL 9016 equivalent), paint

Speaker Mounting Method
Spring clamp
Weight
560 g (1.23 lb)
Accessory
Paper pattern …1
Connection
Push wire connection (Bridging terminal-2 branch type)
Applicable Cable
Solid wire: 0.5 – 3 m㎡ (AWG 20 – 12)
