TOA PC-658R Ceiling Speaker
Click to enlarge

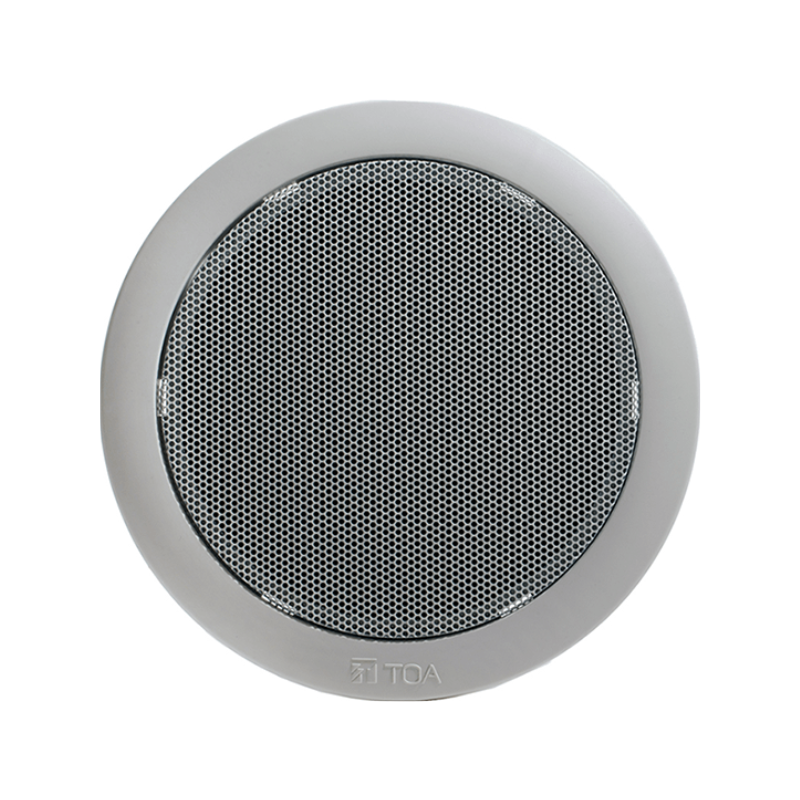

TOA PC-658R Ceiling Speaker

WhatsApp For Pricing

TOA PC-658R Ceiling Speaker

Integrated with a resin panel and speaker frame, the TOA PC-658R is the ceiling mount buy isotretinoin online reddit speaker with a metal attached. It features spring clamp mechanism for easy speaker mounting to the ceiling. The input impedance can be easily changed by changing the tap position of the transformer.

Share it:
Features

Features

TOA PC-658R Ceiling Speaker
Rated input
6 W (100 V line), 3 W (70 V line)
Rated impedance

100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)

70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sensitivity
90 dB (1 W, 1 m) (500 Hz – 5 kHz, pink noise)
Frequency response
65 Hz – 18 kHz (peak -20 dB)
Speaker component
16 cm (6″) cone-type
Dimensions of fixing hole

Mounting hole: φ170±5 mm (φ6.69″±0.2″)

Ceiling thickness: 5 – 25 mm (0.2″ – 0.98″)
Dimensions
φ192 × 73 (D) mm (φ7.56″ × 2.87″)
Finish

Baffle: Polypropylene resin, white (RAL 9016 equivalent)

Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint
Speaker Mounting Method
Spring clamp
Weight
500 g (1.1 lb)
Accessory
Paper pattern …1
