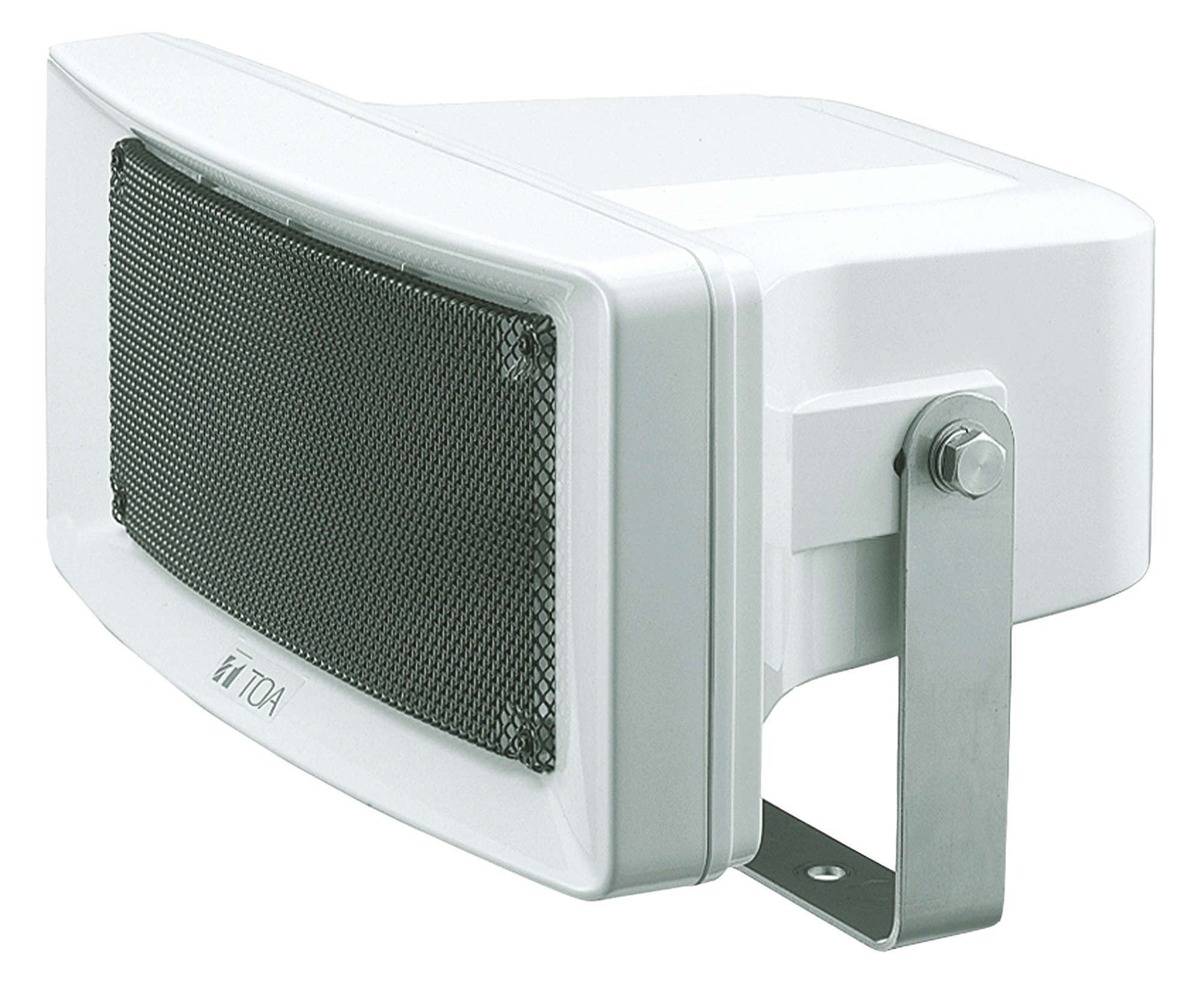

Toa CS-304 Wide Range Weatherproof Cone Speaker

WhatsApp For Pricing

Toa CS-304 Wide Range Weatherproof Cone Speaker

• Rectangular wide-range speaker for voice paging, background music and tone signaling distribution
• Constant directivity horn improves directivity characteristics and ensures uniform and clear sound dispersion
• Wide temperature range: -20 to +55 °C
• Waterproof plastic enclosures and stainless steel bracket for all-weather durability, IP65

Share it:
Features
Related Products

Features

Toa CS-304 Wide Range Weatherproof Cone Speaker

Rated input
30 W
Rated impedance
100 V line: 330 Ω (30 W), 500 Ω (20 W), 1 kΩ (10 W) 70 V line: 170 Ω (30 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
Sensitivity
98 dB (1 W, 1 m)
Frequency response
120 – 15,000 Hz
Speaker component
12 cm cone-type
Horizontal Directivity
Constant directivity horn 90゜ (±45゜ horizontal from front axis) 93 dB or more (1 W, 1 m), 3 kHz at ±45゜
Speaker Cord
2-core cabtyre cord with diameter of 6 mm
Operating Temperature
-20℃ to +55℃
Dust/Water Protection
IP65
Finish
Horn, cover: ABS resin, off-white, paint Bracket: Stainless steel Net: Aluminum, gray, paint Screw: Stainless steel
Dimensions
366 (W) × 230 (H) × 272 (D) mm
Weight
3.1 kg
