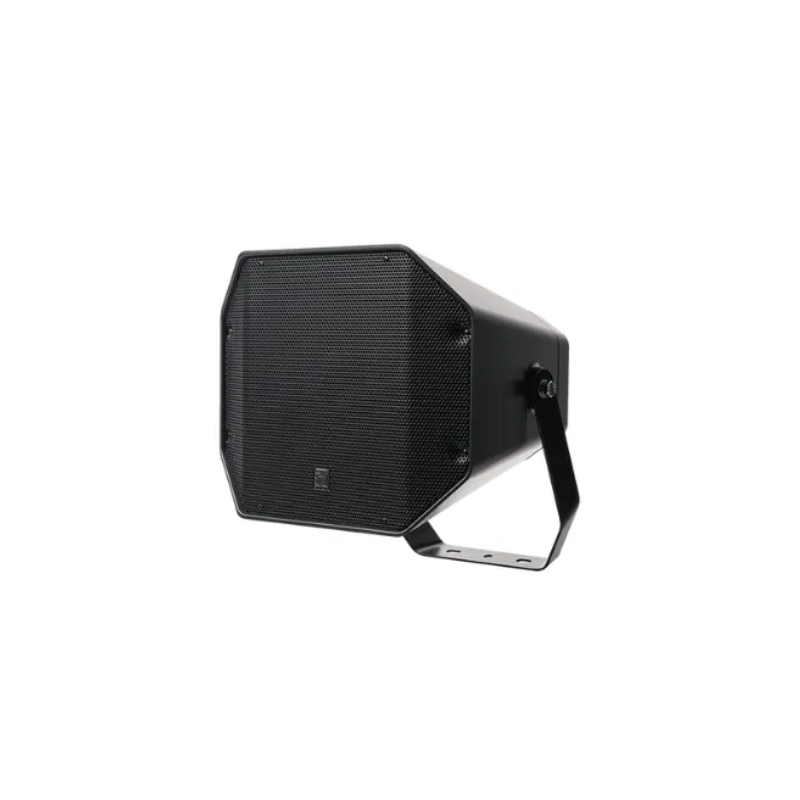

Toa CS-760B Two-way Weatherproof Music Horn Speaker
|
Rated input
|
60 W (high impedance)
|
|
Rated impedance
|
100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W) 70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W)
|
|
Sensitivity
|
100 dB (1 W, 1 m)
|
|
Maximum Sound Pressure Level
|
117 dB (60W, 1 m)
|
|
Frequency Response
|
100 – 20 kHz
|
|
Crossover Frequency
|
2.5 kHz
|
|
Directivity Angle
|
Horizontal: 90° ; Vertical: 80°
|
|
Speaker Component
|
Low Frequency: 16 cm cone-type High Frequency: 2.5 cm dome tweeter
|
|
Dust/Water Protection
|
IP 66
|
|
Connection
|
Speaker Cord (Hot: Black ; Com: White)
|
|
Finish
|
Enclosure: ABS, Black, paint coating Punched net: Surface treated steel plate, Black, paint coating Bracket: Stainless steel, Black, powder coating
|
|
Dimensions
|
388 (W) × 310 (H) × 367 (D) mm
|
|
Weight
|
7.4 kg
|
|
Option
|
Pole Mounting Bracket: SP-131 Speaker Mounting Bracket: SP-201 Pole Band: YS-60B Speaker Stand: ST-34B
|
