Rated input
|
15 W
|
|
Rated impedance
|
100 V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W) 70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W)
|
|
Sound Pressure Level
|
112 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level)
|
|
Frequency response
|
280 Hz – 12.5 kHz
|
|
Dust/Water Protection
|
IP65
|
|
Polarity
|
Hot: Black, Com: White
|
|
Operating Temperature
|
-20 ℃ to +55 ℃ (must be free from dew condensation)
|
|
Finish
|
Horn flare: Aluminum, off-white, powder coating Reflector horn and rear cover: ABS resin, off-white Bracket, Screws and bolts: Stainless steel Speaker cable: Polyvinyl chloride insulated cabtyre cable (6 mm in diameter, 600 mm in length)
|
|
Line Voltage
|
100 V line or 70 V line
|
|
Dimensions
|
222 (W) × 179 (H) × 234 (D) mm
|
|
Weight
|
1.3 kg
|
|
Option
|
Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)
|

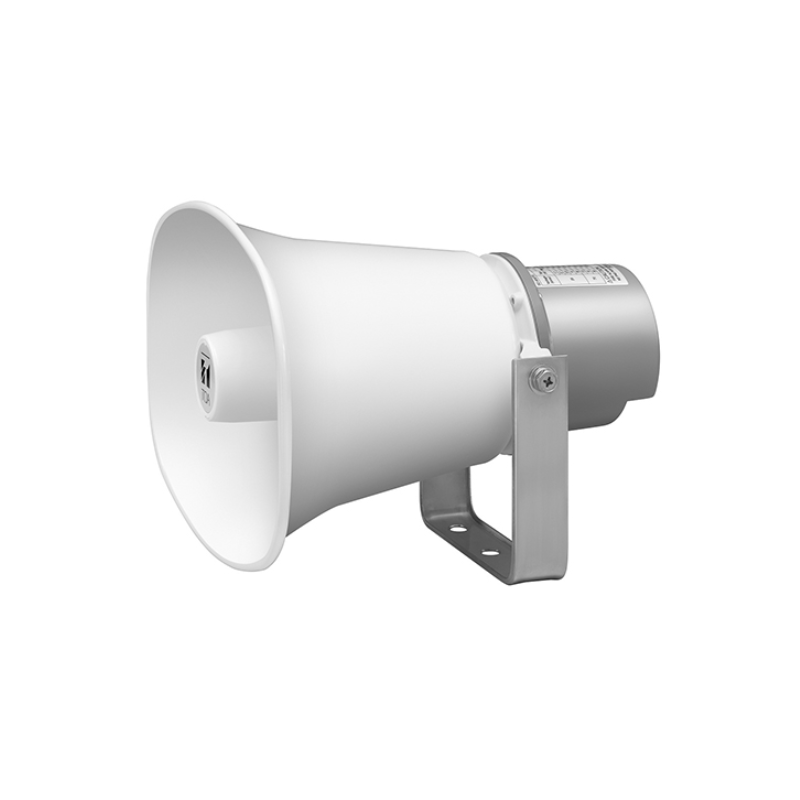

Toa SC-615M Paging Horn Speaker
WhatsApp For Pricing
Toa SC-615M Paging Horn Speaker
• Very rugged speaker with durable construction ensures long-term reliable operation
• High-quality sound
• High SPL
• Easy impedance selection through switch
• High impedance 100 V line
• Shock resistant oval horn
