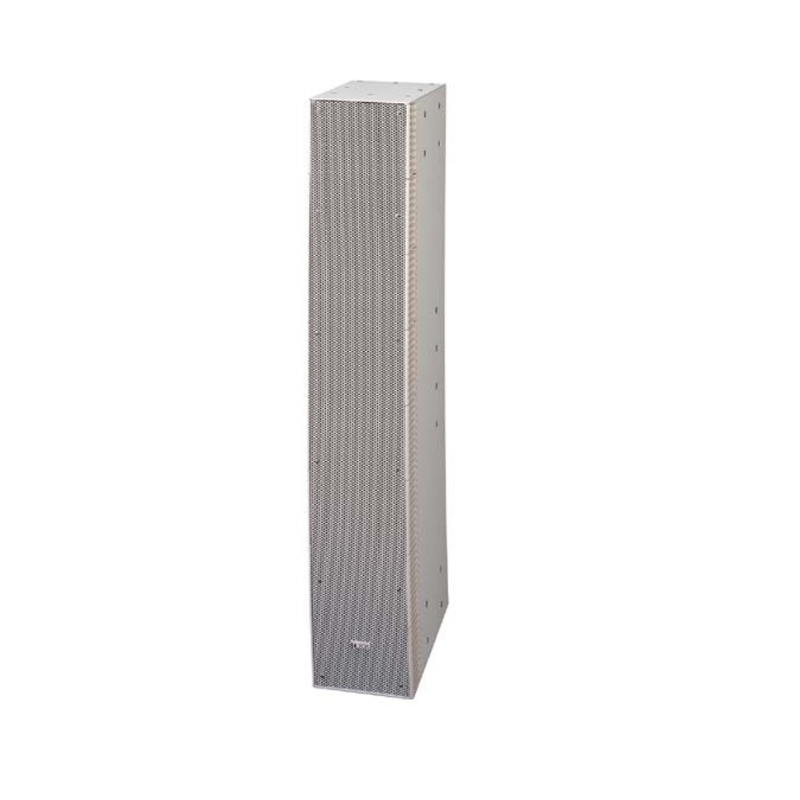

Toa SR-S4S 2-Way Line Array Speaker System

WhatsApp For Pricing

• 2-way line array speaker with 8 x 10 cm (4“) woofers and 24 high-frequency drivers, installed vertically
• Sync-Drive technology creates an ideal line sound source
• Clear sound with reduced attenuation over distance
• Targeting the speaker’s beam to the listener area reduces reflections from the floor and ceiling and reduces the danger of feedback
• Splashproof versions (SR-S4LWP/SR-S4SWP)
• Bi-amp or single amp drive possible
• Wide variety of mounting brackets available

Share it:
Features
Related Products

Features

Input Connector
M5 screw terminal, distance between barriers: 12.2 mm and Neutrik NL4MP × 2
Rated impedance
8 Ω (single-amp mode) Low 8 Ω, High 8 Ω (bi-amp mode)
Frequency response
70 Hz – 20 kHz (when recommended parameters are applied by the optional DP-SP3)
Speaker component
Low frequency: 10 cm cone-type × 8 High frequency: 2.5 cm balanced dome-type × 24
Option

Matching transformer: MT-S0601, Extension plate: SR-EP4, Flying bracket: SR-FB4,

Wall tilt bracket: SR-TB4, Stand adapter: SR-SA4, Protection pad: SR-PP4, Digital speaker processor: DP-SP3

Dimensions
160 (W) × 892 (H) × 303 (D) mm
Finish
Enclosure: MDF, white, paint Front grille: Punched steel plate, white, acrylic paint
Enclosure
Bass-reflex type
Power Handling Capacity
Continuous program: 600 W (single-amp mode) Low 240 W, High 240 W (bi-amp mode)
Sensitivity
93 dB (1 W, 1 m)
Crossover Frequency
3.5 kHz
Directivity Angle
Horizontal: 90゜, Vertical: 10゜
Weight
16 kg
Accessory
Bi-amplifier drive rating label …1, Bi-amplifier drive input indication label …1
