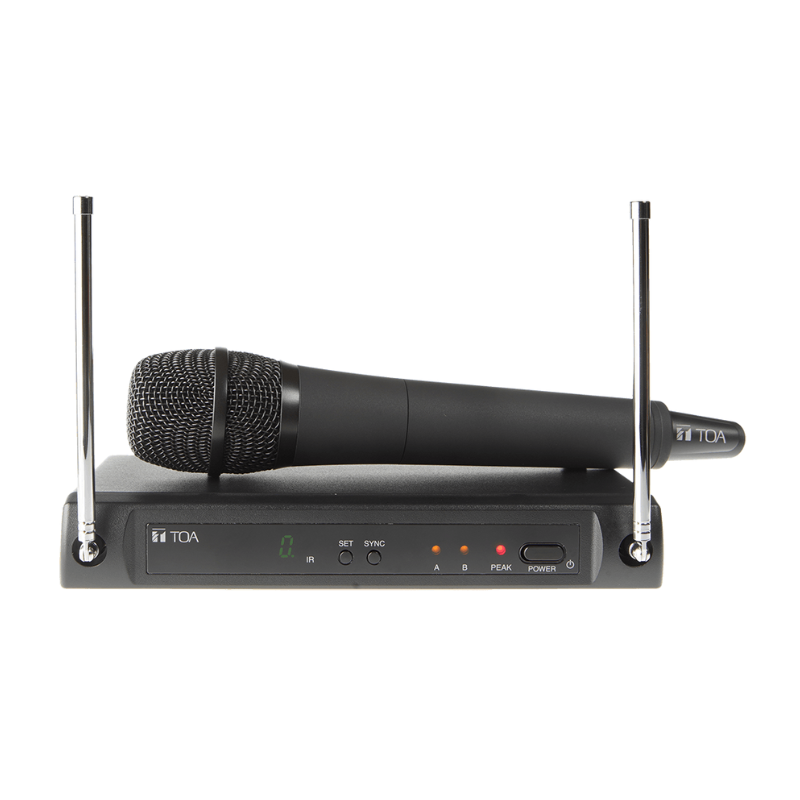

Product Composition | Handheld wireless microphone x 1 Receiver x 1 |
---|---|
Frequency Range | 694 – 806 MHz (*1), UHF |
Channel Selectable | 4 channels |
Tunable Frequencies | 25 kHz Steps |
Pilot Tone | 32.768 kHz |
Total Harmonic Distortion | <1% @ 1kHz |
Function | IR sync, Channel scan, Battery indicator |
Accessory | AC adapter x 1 Microphone holder x 1 |
Wireless Microphone
Microphone Element | Dynamic with cardioid pattern |
---|---|
RF Carrier Power | 10 mW |
Audio Frequency Response | 80 – 15,000 Hz |
Audio Input Level | 140 dB SPL (Maximum) |
Modulation System | PLL synthesizer |
Battery | 1 AA size alkaline battery, 1.5V |
Battery Life | Approx. 10 hours |
Indicator | Battery Status LED, 7 Segments LED |
Finish | Resin, coating |
Dimensions | Approx. 250 x 50 mm |
Weight | Approx. 245 g (with battery) |
Wireless Receiver
Diversity Reception | AC mains (supplied AC-DC adapter must be used) |
---|---|
Sensitivity | 10uV at 45dBA S/N |
Squelch (SQ) | Tone SQ, Carrier SQ and Noise SQ |
Audio Frequency Response | 50 – 15,000Hz |
Audio Output Level (Maximum) | Balanced (XLR socket): -20dBu Unbalanced (1/4″ jack socket): 10dBu |
Power Supply | 11-18 VDC 300mA |
Dimensions | 215 (W) × 39 (H) × 102 (D) mm (excluding antenna and BNC) |
Weight | 480 g |
(*1)
Band | Frequency |
A | 694 – 703 MHz, UHF |
B | 748 – 758 MHz, UHF |
C | 803 – 806 MHz, UHF |
