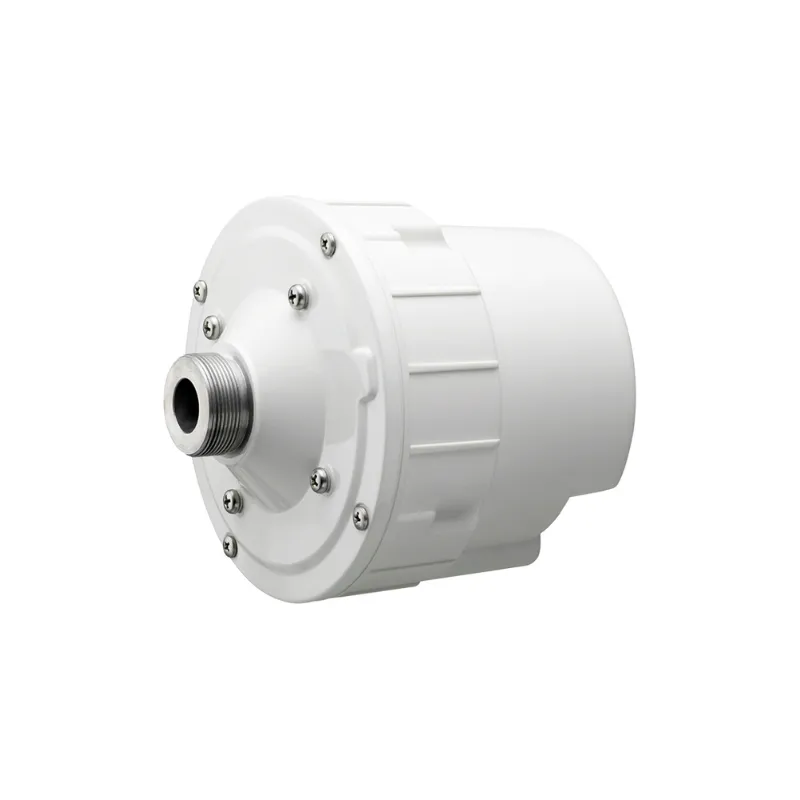

Toa TU-652M Driver Units for Horn Speakers
|
Rated input
|
50 W
|
|
Rated impedance
|
100 V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W) 70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W) |
|
Sensitivity
|
96 dB (1 W, 1 m) (500 Hz – 5 kHz, pink noise)
|
|
Frequency response
|
45 Hz – 20 kHz (peak -20 dB)
|
|
Speaker component
|
20 cm (8″) coaxial cone-type
|
|
Dimensions of fixing hole
|
Mounting hole: φ250±3 mm (φ9.84″±0.12″) Ceiling thickness: 5 – 25 mm (0.2″ – 0.98″) |
|
Dimensions
|
φ280 × 92 (D) mm (φ11.02″ × 3.62″)
|
|
Finish
|
Baffle: Steel plate, white (RAL 9016 equivalent), paint Grille: Surface-treated steel plate net, white (RAL 9016 equivalent), paint |
|
Speaker Mounting Method
|
Spring clamp
|
|
Weight
|
1.6 kg (3.53 lb)
|
|
Accessory
|
Paper pattern …1
|
|
Connection
|
Push-in connector (bridging terminal-2 branch type)
|
|
Applicable Cable
|
600 V vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: φ0.8 – φ1.6 mm (equivalent to AWG 20 – 14) 7-core twisted copper wire: 0.75 – 1.25 m㎡ (equivalent to AWG 18 – 16) |
