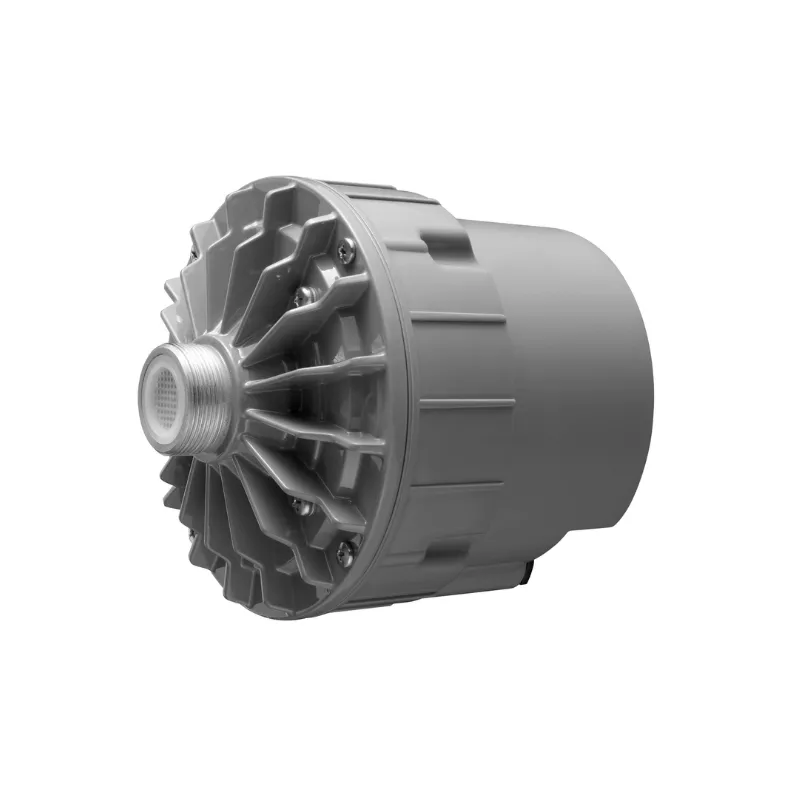

Toa TU-660M 60W Driver Unit with Transformer for Horn Speaker

WhatsApp For Pricing

High quality sound
High SPL
High durability

Share it:
Features
Related Products

Features

TOA TU-660M 60 Watt Line Unit

Rated input
60 W
Rated impedance

100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W)

70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W)

Horn Coupling
1 -3/8 18 threads (inch screw)
Frequency response
150 Hz -8 kHz (When operated with JIS C 5504 standard horn.)
Speaker component
8″(20cm) Coaxial 2-way cone-type
Dimensions of fixing hole

Mounting hole: ø170 ± 5mm (ø6.69″±0.2″)

Ceiling thickness: 5 – 25mm (0.2 – 0.98″)

Dimensions
ø139 x 151 (D) mm (ø5.47” x 5.94”)
Finish

Flange: Aluminum, gray, powder

coating Rear cover: ABS resin, gray Screws: Stainless steel

Speaker cable: Polyvinyl chloride insulated cabtyre cable

(6 mm (0.24“ lin diameter, 600 mm (23.62“ lin length)

Water Protection
IP65 (When a driver is operated with a horn.)
Operating Temperature
-20° to +55 °C (-4 °F to +131 °F) (no condensation)
Optional Accessories
Driver unit cover: UC-200A
