Frequency Response 1 ( z -10 dB)
|
65 Hz – 20 kHz
|
|
Coverage (Conical)
|
130°
|
|
Power Handling
|
[80 W Cont. / 320 W Peak
|
|
Sensitivity (SPL 1W/1m).
|
86 dB
|
|
Max SPL
|
110 dB
|
|
Impedance
|
Ohms nominal (transformer bypass)
|
|
Network
|
Network and transducers protected, 12 dBloct 3.3 kHz
|
|
LF Transducer
|
4 in. (100 mm) Polypropylene cone
|
|
HF Transducer
|
75 in (19 mm) Ti Mylar laminate
|
|
Transformer Taps
|
0V: 1.88,3.75, 7.5, 15 or 30W 100V: 3.75, 7.5, 15 or 30W Bypass: 8 Ohms
|
|
Connectors
|
Phoenix type removable, with screw terminals and “loop-thru”, accepts 12 ga wire
|
|
Enclosure Material
|
Baffle – UL 94V-O rated ABS Backcan – Zinc plated steel
|
|
Grille
|
Perforated powder coated steel with safety tether
|
|
Support Hardware
|
Tile bridge, backing plate support, cutout template, paint shield
|
|
Dim (H x Dia.)
|
6.9″ x 7.1″ (176mm x 181mm)
|
|
Cutout Size
|
7.25″ (184mm)
|
|
Net Weight (each)
|
6.0 Ibs (2.7 kg)
|
|
Shipping Weight (pair)
|
14.0 Ibs (6.4 kg)
|

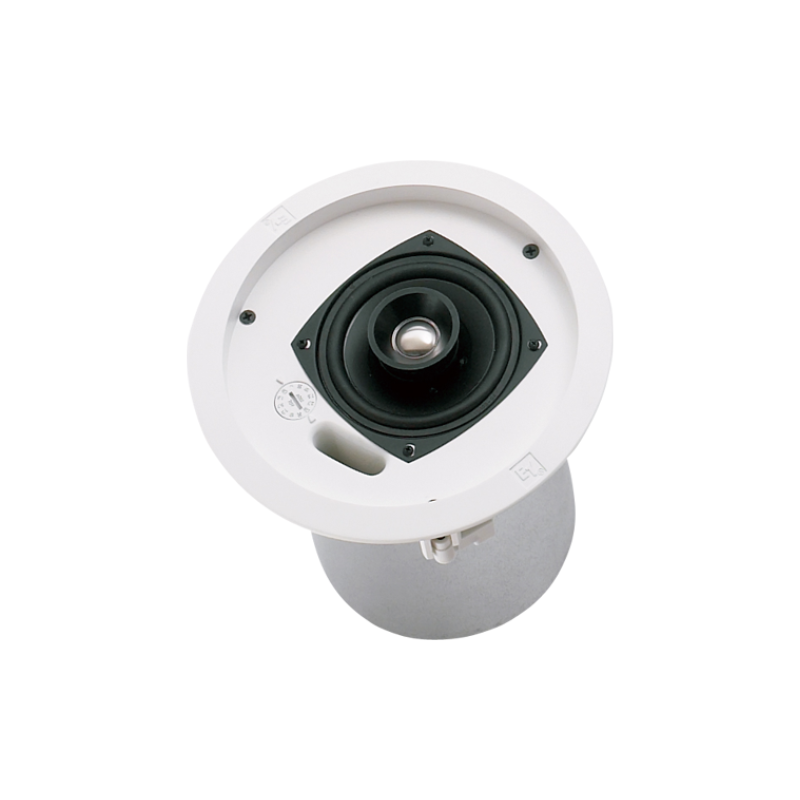

EV-EVID C4.2
WhatsApp For Pricing
EV-EVID-C4-2 Electro Voice Speaker
• 4″ coaxial two-way
• Waveguide coupled Ti tweeter
• Full bandwidth overload protection
• Front baffle wattage tap adjustment
• Integrated low loss matching transformer
allows for either 70v/100v or 8-ohm
operation
• Includes tile bridge and mounting ring for
easy installation
• Integrated ported enclosure for extended
bass response
