Rated input
|
100V LINE: 15W, 70V LINE: 15W
|
|
Rated impedance
|
100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) 70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W) 8 Ω |
|
Sensitivity
|
91 dB (1 W, 1 m) (500 – 5,000 Hz, pink noise)
|
|
Frequency response
|
70 – 20,000 Hz (peak -20 dB)
|
|
Speaker component
|
12 cm (5″) cone-type + balanced dome-tweeter
|
|
Applicable Cable
|
600 V vinyl-insulated cable (IV wire or HIV wire) Solid copper wire: φ0.8 – φ1.6 mm (equivalent to AWG 20 – 14) 7-core twisted copper wire: 0.75 – 1.25 m㎡ (equivalent to AWG 18 – 16) |
|
Dimensions
|
φ186 × 251 (H) mm (φ7.32″ × 9.88″) (unit only)
|
|
Finish
|
Enclosure: HIPS resin, off-white (RAL 9010 or equivalent color) Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint |
|
Connection
|
Push-in connector (bridging terminal-2 branch type)
|
|
Enclosure
|
Bass-reflex type
|

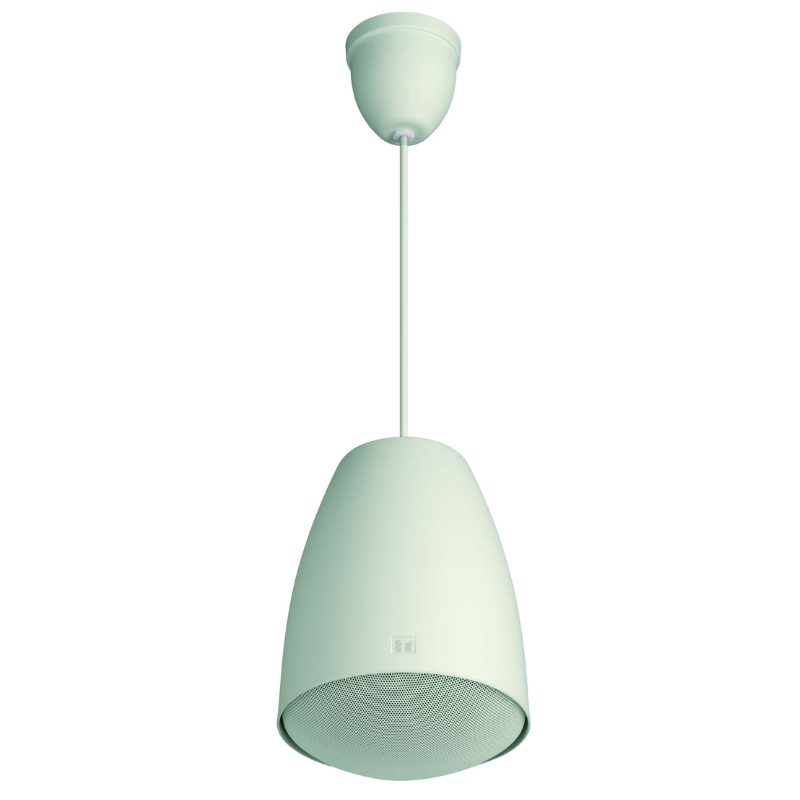

Toa PE-304 Pendent Speaker 30w 2 way
WhatsApp For Pricing
• Toa PE-304
• Ideally suited for BGM and announcements
• Stylish and outstanding design inspired by the finest lighting fixtures
• Excellent sound quality
• Sturdy cable extendable up to 5 meters
• Paintable
• Input impedance easily changeable
• Bass-reflex type
Share it:
Features
