- Power Source: 24 V DC (operating range: 15 – 40 V DC, supplied from the VX-3000 system.)
- Operation: Emergency key, Function keys … 3, CPU switch, Reset switch, Talk key
- Current Consumption: 240 mA or less
- Audio Output: 0 dB*, transformer-balanced
- Distortion: 1% or less
- Frequency Response: 200 Hz – 15 kHz
- Signal to Noise Ratio: 55 dB or more
- Microphone: Unidirectional dynamic microphone with talk key, AGC (ON/OFF switchable), Microphone element failure detectable by using a built-in oscillator
- Chime: Built inside (PCM sound source), Monitoring available with a built-in speaker.
- Volume Control: Microphone volume control, Monitor speaker volume control, Chime volume control (using the software)
- Maximum Cable Length: 800 m or 2624.67 ft (Total)
- Connection Cable and Connector: Main line: Shielded CPEV cable (each one pair of Audio line, Data line, Monitor/control line, and power supply line) or Shielded Category 5 twisted pair cable for LAN (CAT5-STP) or greater, M3 screw terminal
- Number of Connectable RM-320F: 4 units
- Monitor Speaker: Built-in type
- Indicator: Status indicators … 3, Power indicator, Failure indicator, CPU indicator, Selection indicators … 3, Microphone indicator, Broadcast status indicator
- Operating Temperature: 0 to 40°C (32 to 104°F)
- Operating Humidity: 35 to 80% RH (no dew condensation)
- Finish: ABS resin, blueish gray (PANTONE 538 or its equivalent)
- Dimensions: 200 (w) x 215 (h) x 95 (d) mm (7.87″ x 8.46″ x 3.74″) (including the Wall Mounting Bracket)
- Weight:48 kg (3.26 lb
RM-200SF
WhatsApp For Pricing

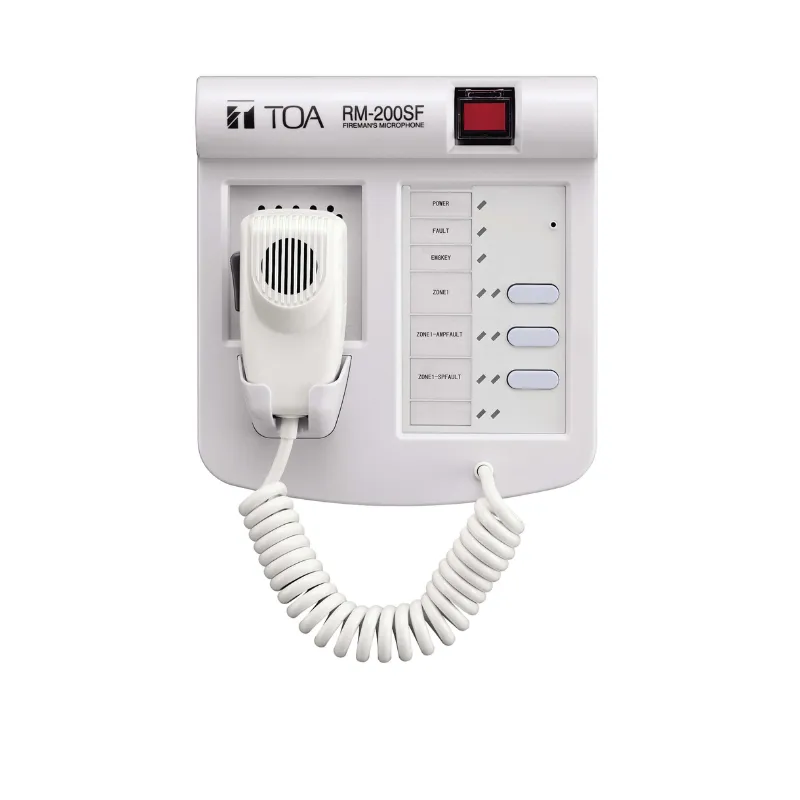

The RM-200SF is a wall-mount remote microphone for
TOA’s Public Address and Voice Evacuation System. It
is equipped with an Emergency key, permitting it to be
used as a remote microphone for emergency broadcast.
Zone selection and microphone announcement can
be made at the time of emergency broadcast. It
offers a surveillance function to detect failures including
microphone element failure. The RM-200SF has three
function keys that can be set as individual or group
selection keys, and each key is linked with the
corresponding two indicators. Connecting the optional
RM-210 or RM-320F Extension units to the RM-200SF
expands the number of function keys and indicators in
blocks of ten (RM-210) or twenty (RM-320F).
• For general and emergency broadcast
• For activation of emergency mode, start and stop automatic broadcasts of emergency announcements, reset
emergency signals, and live microphone announcements
• CPU-switch for emergency broadcast to all zones even in case of a CPU error
• Up to 4 Key Extension Units per Emergency Remote Microphone
